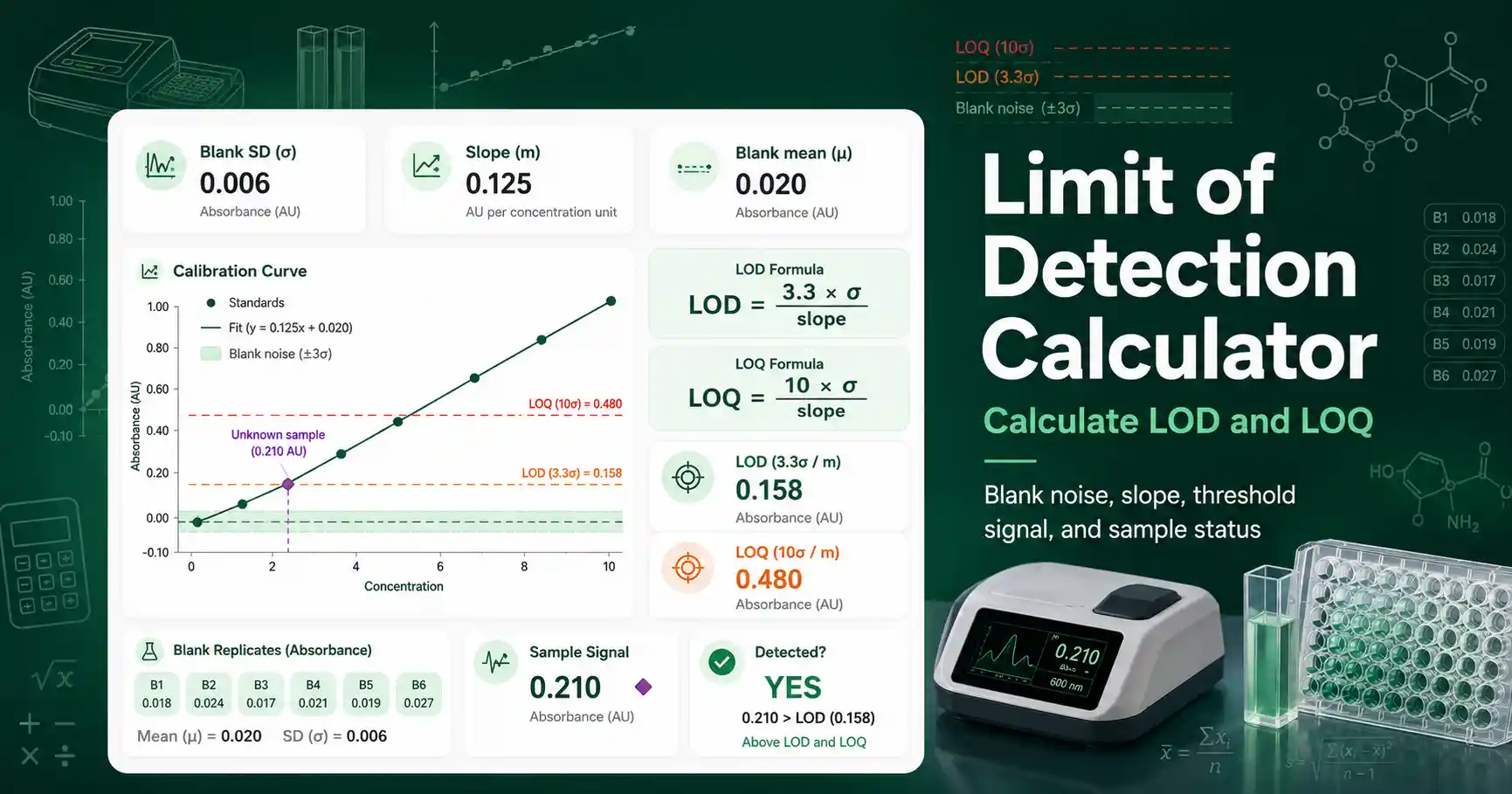

Analytical chemistry calculator
Calculate LOD and LOQ from calibration slope and response variability. Use the result to judge whether a signal is likely detectable under a defined analytical method.
Analytical chemistry calculator
Enter response standard deviation and calibration slope to estimate LOD and LOQ. Use advanced mode when you also want a signal threshold and sample check.
Formula used: LOD = kσ / S and LOQ = qσ / S. In advanced mode, decision signal = blank mean + kσ.
The estimated LOD is 0.825 µM after the selected dilution factor. The estimated LOQ is 2.5 µM. These values depend strongly on the response SD and the calibration slope.
The sample is detectable by this threshold, but it may be below the estimated quantitation limit.
The Limit of Detection Calculator estimates the lowest concentration that gives a response above background noise by a chosen statistical threshold.
The core formula is LOD = kσ / S, where σ is response standard deviation and S is calibration slope.
The multiplier k represents the confidence rule or validation convention used by the method.
A common analytical estimate uses k = 3.3 for LOD and 10 for LOQ.
The calculator keeps the concentration unit flexible because the result uses the same unit as the slope denominator.
If the slope is entered as absorbance units per µM, the LOD result is in µM.
If the slope is entered as fluorescence units per ng/mL, the LOD result is in ng/mL.
The calculation is useful for spectrophotometry, fluorescence assays, chromatography signals, and plate-reader methods that use a linear calibration range.
Users who are building a standard curve can first estimate slope with the Calibration Curve Calculator and then use that slope here.
Users working with immunoassay absorbance data may also compare the result with the ELISA Standard Curve Calculator when the assay response is linear near the low end.
A lower LOD means the method can detect a smaller amount of analyte under the entered conditions.
A higher slope improves detection because a small concentration change creates a larger signal change.
A higher standard deviation worsens detection because the blank or low-level signal is noisier.
The LOD result is not a universal property of an analyte.
It belongs to a specific method, matrix, instrument setting, calibration model, and sample preparation workflow.
The advanced signal threshold uses decision signal = blank mean + kσ.
This threshold helps show whether a sample signal is above the blank background by the selected rule.
A sample above LOD may be detectable but still too uncertain for reliable quantitation.
A sample above LOQ is usually easier to report as a numerical concentration, assuming the calibration is valid.
A sample below LOD should usually be described as below detection rather than forced into a precise concentration.
The NIH-hosted review on limits of blank, detection, and quantitation explains why LOD depends on blank behavior, low-level samples, and statistical decision rules. Read the review on LoB, LoD, and LoQ.
Students can use this calculator to learn how noise and sensitivity shape analytical detection.
Teachers can use it to demonstrate why a steep calibration line gives a better detection limit than a flat line.
Lab workers can use it during method checks, teaching exercises, and non-clinical assay development calculations.
Researchers can use it for early method comparison when choosing between instruments, wavelengths, or detection chemistries.
The calculator is best suited to linear calibration data near the low concentration region.
It should not be used to validate a nonlinear assay without checking the method-specific guidance.
It also should not replace a formal validation protocol when regulatory, clinical, or high-stakes decisions depend on the result.
Verify critical lab calculations independently before using them in real experiments.
Given values: response standard deviation σ = 0.003 absorbance units, calibration slope S = 0.012 absorbance units per µM, LOD multiplier k = 3.3, and LOQ multiplier q = 10.
Formula: LOD = kσ / S and LOQ = qσ / S.
Substitution: LOD = 3.3 × 0.003 / 0.012.
Result: LOD = 0.825 µM.
LOQ calculation: LOQ = 10 × 0.003 / 0.012 = 2.5 µM.
Interpretation: the method can detect about 0.825 µM under these assumptions, but quantitative reporting is more reliable near or above 2.5 µM.
It estimates the lowest analyte concentration that can be detected from response standard deviation and calibration slope. It can also calculate LOQ and compare a sample signal with the detection threshold.
The calculator uses LOD = kσ / S, where σ is response standard deviation, S is calibration slope, and k is the selected detection multiplier. A common validation estimate uses k = 3.3.
LOD marks a concentration that can be detected with a defined threshold. LOQ is a higher estimate where quantitation is expected to be more reliable under the selected method.
Yes, the calculator is useful for linear calibration methods such as absorbance assays, ELISA standard curves in their linear range, fluorescence assays, and other analytical signals.
